Application

AGV
The single cell numbers in the battery modules are less because of the high capacity of cells. BMS can monitor the status of each battery cell in real time to ensure the
continuous and safe operation of the battery pack.
Forklift
​​​​​​​New technologies such as mobile payment have expanded the popularity of intelligent terminals in offline scenes, and brought technological innovations such as mobile payment,......
Special Vehicles
pack is more reliable and safe as we use the Electric Vehicles standard module and the pack process is more simple.
Module Selection
 Our iron batteries
We use BYD,EVE and CATL automotive power battery modules in mass production, leading the world in technology.

 Our iron batteries
The single cell numbers in the battery modules are less because of the high capacity of cells. BMS can monitor the status of each battery cell in real time to ensure the
continuous and safe operation of the battery pack.

 Our iron batteries
pack is more reliable and safe as we use the Electric Vehicles standard module and the pack process is more simple.
181
Specifications
Module Specification 1P8S 1P8S
Norminal Voltage 25.6V 25.6V
Norminal Capacity 200Ah 250Ah
Size
Highth  190mm
Width 445mm
Length 540mm
182副本
Specifications
Module Specification 3P4S 4P3S
Norminal Voltage 12.8V 9.6V
Norminal Capacity 315Ah 420Ah
Size
Highth  210mm
Width 138mm
Length 490mm
183
Specifications
Module Specification 1P8S 2P4S
Norminal Voltage 25.6V 12.8V
Norminal Capacity 105Ah 210Ah
Size
Highth  210mm
Width 138mm
Length 340mm
184
Specifications
Module Specification 1P8S 2P4S
Norminal Voltage 25.6V 12.8V
Norminal Capacity 230Ah 460Ah
Size
Highth  215mm
Width 180mm
Length 475mm
AGV Iron Lithium Battery
Our LFP battery applies to AGVs and industrial electric vehicles perfectly. We have different battery of 24V, 48V, 80V and high-voltage series. Of course, we
have the supporting chargers to these batteries as well. (Battery voltage and capacity can be customized according to user needs)
185
186
Specifications
Nominal Voltage 25.6V
Nominal Capacity 100~315Ah
Size Customized
Weight  Customized
Vehicle communication RS232/RS485
CAN2.0/CAN OPEN
Charging Efficiency 0.5~1C
Charging
communication		 RS485/CAN2.0/WIFI
Remote maintenance Yes
187
188
Specifications
Nominal Voltage 24V/48v
Nominal Capacity Settable
Remote maintenance 3000w
Specifications
Nominal Voltage 24V/48v
Nominal Capacity Settable
Remote maintenance 6000w
We define 48V series lithium batteries into two categories according to their capacity: capacity under 100Ah and capacity above 100Ah.
Capacity under 100Ah applies to LMR, FMR, CMR and CTU etc.
Capacity above 100Ah applies to electric reach forklift, balanced forklift and heavy-duty customized vehicles and more.
189
190
48V Series（Small Capacity）
Nominal Voltage 48V/51.2V
Nominal Capacity 10~100Ah
Size Customized
Weight  Customized
Vehicle communication RS232/RS485
CAN2.0/CAN OPEN
Charging Efficiency 0.5~1C
Charging
communication		 RS485/CAN2.0/WIFI
Remote maintenance Yes
191
192
48V Series（Small Capacity）
Nominal Voltage 48V/51.2V
Nominal Capacity 10~100Ah
Size Customized
Weight  Customized
Vehicle communication RS232/RS485
CAN2.0/CAN OPEN
Charging Efficiency 0.5~1C
Charging
communication		 RS485/CAN2.0/WIFI
Remote maintenance Yes
80V series lithium batteries are usually used in medium and large weight
forklifts, shuttle buses, tow tractors and heavy-duty customized vehicles. It has
the characteristics of large capacity, high output power, fast charging, etc.
High voltage series lithium batteries are usually used in heavy equipment such
as electric tour trains and electric industry vehicles. It has the characteristics of
high voltage, high output power and fast charging.
193
194
80V Series Battery
Nominal Voltage 80v
Nominal Capacity 200~630Ah
Size Customized
Weight  Customized
Vehicle communication RS232/RS485
CAN2.0/CAN OPEN
Charging Efficiency 0.5~1C
Charging
communication		 RS485/CAN2.0/WIFI
Remote maintenance Yes
195
196
High Voltage Series
Nominal Voltage 100~320V
Nominal Capacity 100~400Ah
Size Customized
Weight  Customized
Vehicle communication RS232/RS485
CAN2.0/CAN OPEN
Charging Efficiency 0.5~1C
Charging
communication		 RS485/CAN2.0/WIFI
Remote maintenance Yes
AGV Automatic charging solution
MCF can provide various types of chargers according to your requirements. Such as split telescopic charging pile, integrated telescopic charging pile and
extruded charging pile. We also provide wireless communication solutions, charging pile cluster management solutions, etc. It can provide customers multi
vehicles and multi charging piles automatic matching and cooperation which save the charging time and reduce system costs
197
Split Telescopic Charging Pile
Charging Voltage 24~100V
Nominal Power 3~18kw
Charging Current 0~200A
Charging contacts
control		 100~300mm
Height of charging
contacts		 100~1000mm
Charging Efficiency ≥95%
Dispatching
communication		 TCP/WiFi
Battery
communication		 RS232/RS485/CAN
198
Integrated Telescopic Charging Pile
Charging Voltage 24~100V
Nominal Power 3~18kw
Charging Current 0~200A
Charging contacts
control		 100~300mm
Height of charging
contacts		 100~600mm
Charging Efficiency ≥95%
Dispatching
communication		 TCP/WiFi
Battery
communication		 RS232/RS485/CAN

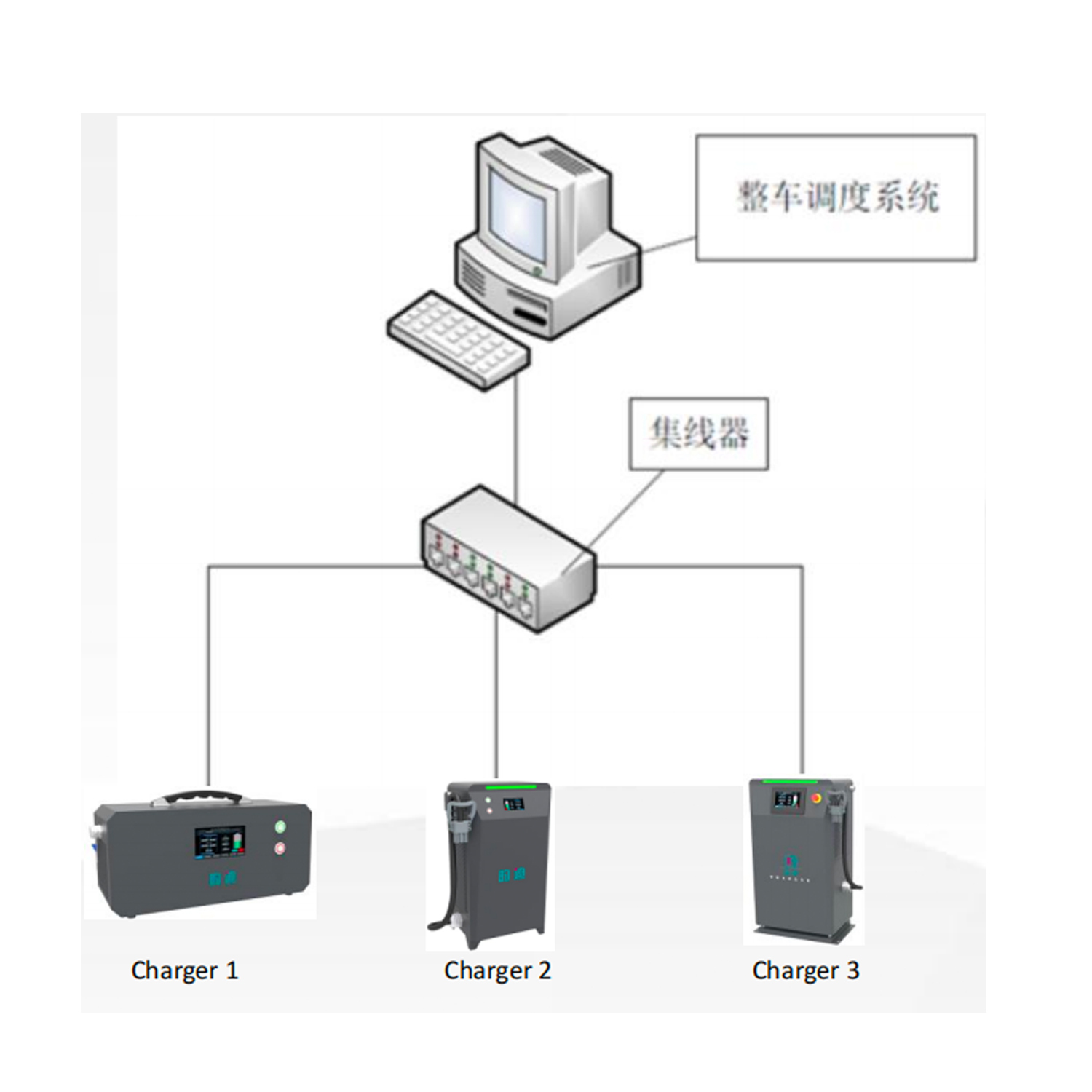

According to customers' requirements, MCF can also provide customers with charging pile cluster management. Our charging piles can directly communicate
with customers' dispatching system to achieve dispatching control, real-time status upload, charging pile online management and other application needs.
199
Charging Pile Cluster Management
Dispatching
communication		 TCP/WiFi
Real time status upload Yes
Charging contacts control Yes
Charging output control Yes
Failure upload Yes
Offline Use Yes
AGV Wireless charging
MCF can provide various types of chargers according to your requirements. Such as split telescopic charging pile, integrated telescopic charging pile and
extruded charging pile. We also provide wireless communication solutions, charging pile cluster management solutions, etc. It can provide customers multi
vehicles and multi charging piles automatic matching and cooperation which save the charging time and reduce system Compared with the traditional contact charging system, the wireless intelligent charging system has the characteristics of high reliability, high security, and high
environmental adaptability. In the field of AGV, it has been widely used in manufacturing, warehousing, logistics, security, patrol, handling, medical, cleaning
and other industries
The non-contact charging mode has no high requirements on the parking position and accuracy of charging vehicles, and it does not require single vehicle
matching positioning, which can greatly improve the on-site commissioning efficiency.
200
AGV Wireless Charging System
Maximum power of single
charging module		 3000W
Multiple charging modules
in parallel		 Yes
Wireless module spacing
requirements		 ≤30mm
Requirements for vehicle
positioning error		 ≤20mm
CE certification Compliance
(South Germany)
Hydrogen Fuel Cell
With the progress of technology and the reduction of cost, hydrogen fuel cells have gradually entered the industrial vehicle industry. Compared with traditional
lithium battery and lead-acid battery system, hydrogen fuel cell has the characteristics of ultra long endurance and rapid hydrogenation.
24 hours continuously use without stopping.
MCF hydrogen fuel cell system is equipped with hydrogen leak detection system, pipeline pressure detection system and multiple electromagnetic air shutoff
valves, which is in a high safety.
It is same as MCF lithium battery system which can be monitored by our remote service system, and the battery operation can be detected 24 hours by us. It
can actively report any abnormal state of the battery pack.
201
202
Specification & Parameters：
nominal voltage 24/48V
Max Power 10Kw
Continuous Output Power 1.5Kw
Size（LxWxH）mm  642*192*570
Weight 300Ibs/150Kg
Working Temperature 25°F-107°F
Discharge Interface Anderson SB175
Hydrogen Storage
Capacity		 0.2Kg
Hydrogen Pressure 350Bar/5000psi
Hydrogenation Interface WHETN1/J2600
203
2304
Specification & Parameters：
nominal voltage 48V/80
Max Power 20Kw
Continuous Output Power 6Kw
Size（LxWxH）mm  642*600*570
Weight 900Kg
Working Temperature 25°F-107°F
Discharge Interface Anderson SB350
Hydrogen Storage
Capacity		 2Kg
Hydrogen Pressure 350Bar/5000psi
Hydrogenation Interface WHETN1/J2600
