Description

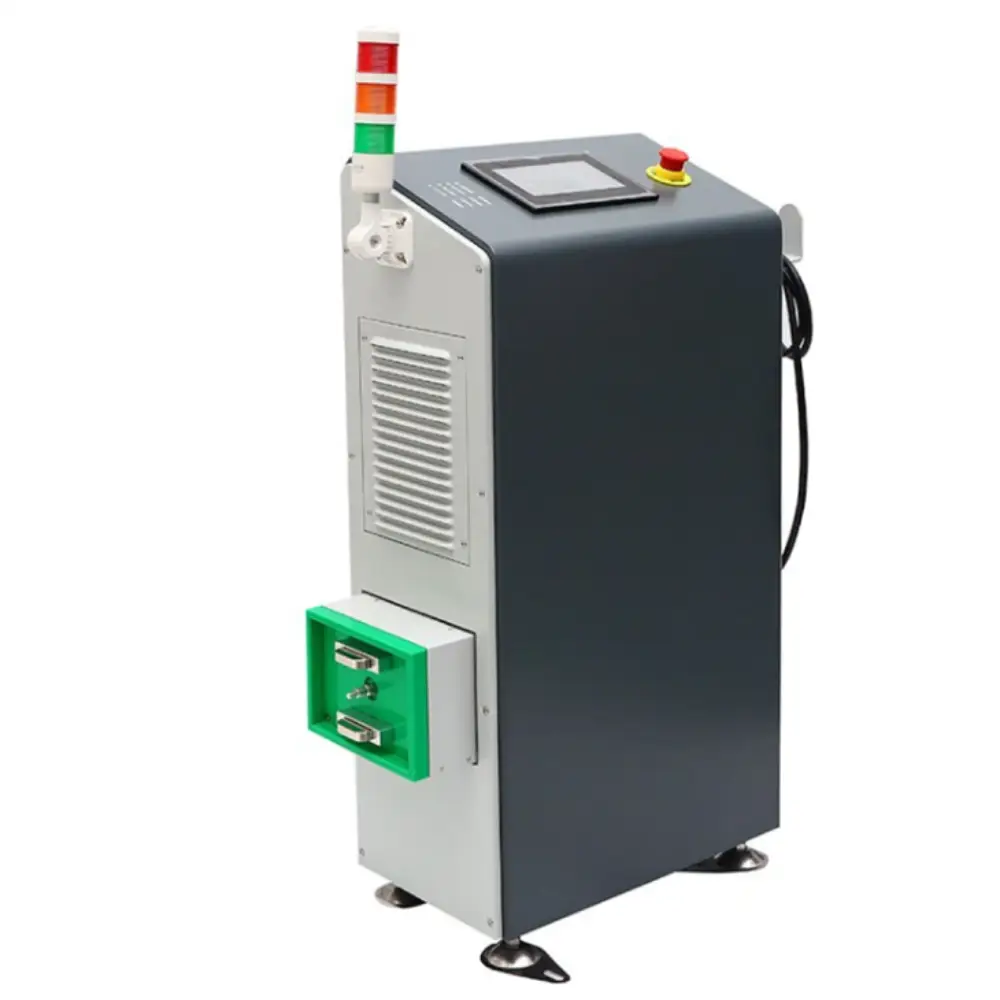

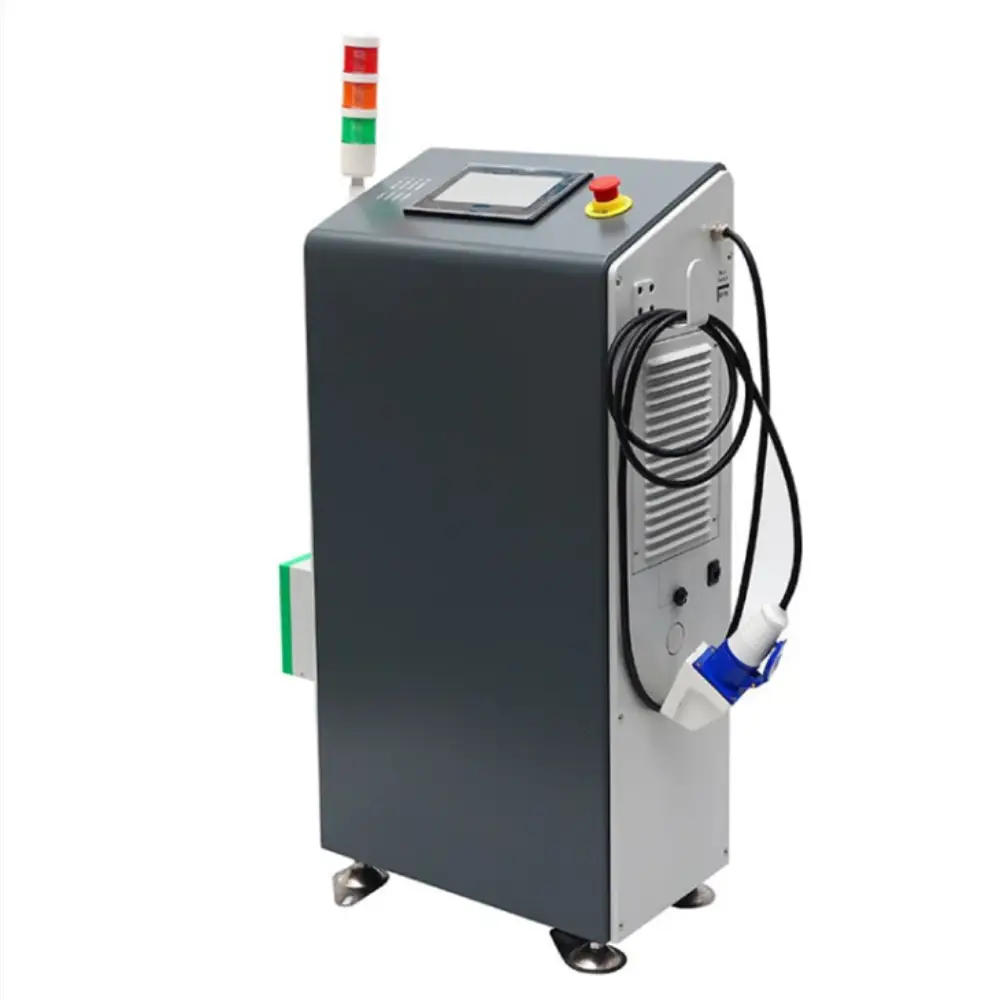

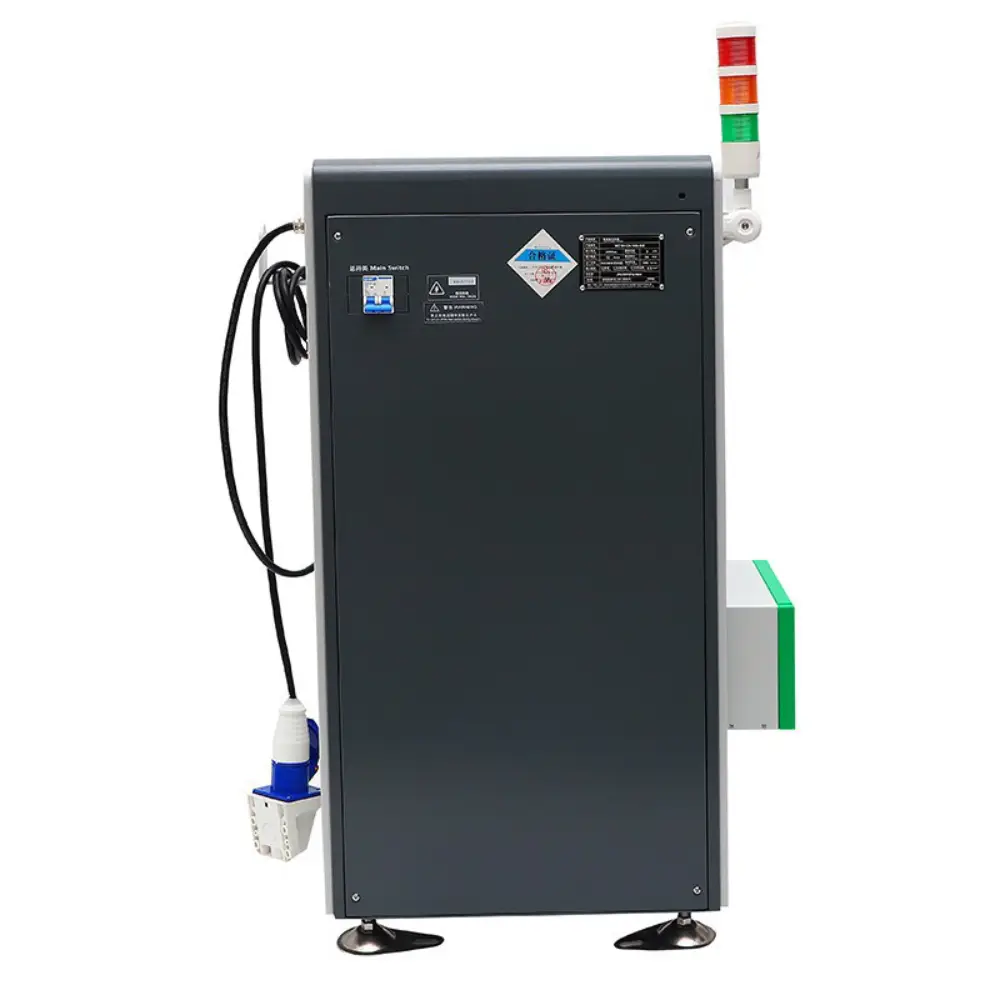

AGV Battery Charger Fast & Reliable Power for Warehouses 24V/48V/80V
Multivolt battery charger used for 36 volt forklift batteries, 48 volt forklift batteries, 24 volt electric pallet stacker batteries, and/or 24 volt electric pallet jack batteries. Comes with gray 24 volt connector and gray 36 volt connector adaptor.
Key Features of AGV Battery Charger Fast & Reliable Power for Warehouses
- Supports USB flash drive (U-disk) firmware upgrades for easy maintenance and software updates.
- Module status display enables real-time monitoring of operating conditions and historical records.
- Charger extension and retraction can be controlled via photoelectric switch signals.
- Charging brush height can be adjusted according to vehicle specifications and model requirements.
- 200 mm telescopic travel as standard (customizable lengths available).
- Supports both communication-based charging and blind charging modes.
- Supports one-to-many charging configurations
Technical Specifications
| Voltage | Power / Voltage range | 1.5KW | 3KW | 6KW | 10KW | 12KW | 15KW | 20KW | 30KW | 40KW |
| 24V | 18V-30V | 50A | 100A | 200A | 300A | |||||
| MODEL | YR8101 | YR8102 | YR8103 | YR8105 | ||||||
| 48V | 30V-60V | 30A | 50A | 100A | 150A | 200A | 250A | 300A | 400A | |
| MODEL | YR8201 | YR8202 | YR8203 | YR8205 | YR8206 | YR8207 | YR8208 | YR8209 | ||
| 80V | 60V-100V | 40A | 80A | 100A | 120A | 150A | 200A | 300A | 400A | |
| MODEL | YR8301 | YR8302 | YR8303 | YR8305 | YR8306 | YR8307 | YR8308 | YR8309 | ||
| 120V | 30V-120V | 20A | 50A | 80A | 100A | 150A | 200A | 300A | 400A | |
| MODEL | YR8501 | YR8502 | YR8503 | YR8505 | YR8506 | YR8507 | YR8508 | YR8509 | ||
| 200V | 100V-200V | 15A | 30A | 45A | 60A | 75A | 100A | 150A | 200A | |
| MODEL | YR8601 | YR8602 | YR8603 | YR8605 | YR8606 | YR8607 | YR8608 | YR8609 | ||
| 500V | 200V-750V | 5A | 10A | 15A | 20A | 30A | 50A | 65A | 100A | |
| MODEL | YR8701 | YR8702 | YR8703 | YR8705 | YR8606 | YR8707 | YR8708 | YR8709 |
Short description
- Liminal Voltage: 24V/48V/80V
- Output Current: 50A, 30A, 100A customized
- LCD/LED display
- Max power: 3 KW
- Safte and stable
- Warranty: 1 Year
Advantages of AGV Battery Charger Fast & Reliable Power for Warehouses
- Hands-free & Efficient: AGVs charge automatically, minimizing downtime.
- Safe & Reliable: Overcharge protection and reduced human exposure.
- Longer Battery Life: Intelligent charging extends battery lifespan.
- Smart & Scalable: Integrates with fleet systems for optimized operations.
Applications
- EV
- Forklift
- Golf car
- Electric pallet truck
- Electric four wheeled vehicles
- Electric tools
Why Choose Our AGV Battery Charger Fast & Reliable Power for Warehouses
- Multi-voltage support: 24V, 36V, 48V batteries for forklifts, pallet stackers, and pallet jacks.
- Intelligent charging: automatically adapts to battery type, capacity, and charge cycle.
- Eco-engineered for efficiency: Environmentally engineered for energy-efficient operation.
- Design: Reliable for multi-shift use, maintenance-free performance.
- Lead-acid & LiFePO4 compatible: Compatible with lead-acid and LiFePO4 batteries.
Get a Custom Solution Today
Looking for a reliable AGV Charger 80V 100A for your project? Contact us now for customized solutions, pricing, and technical support.
