Description

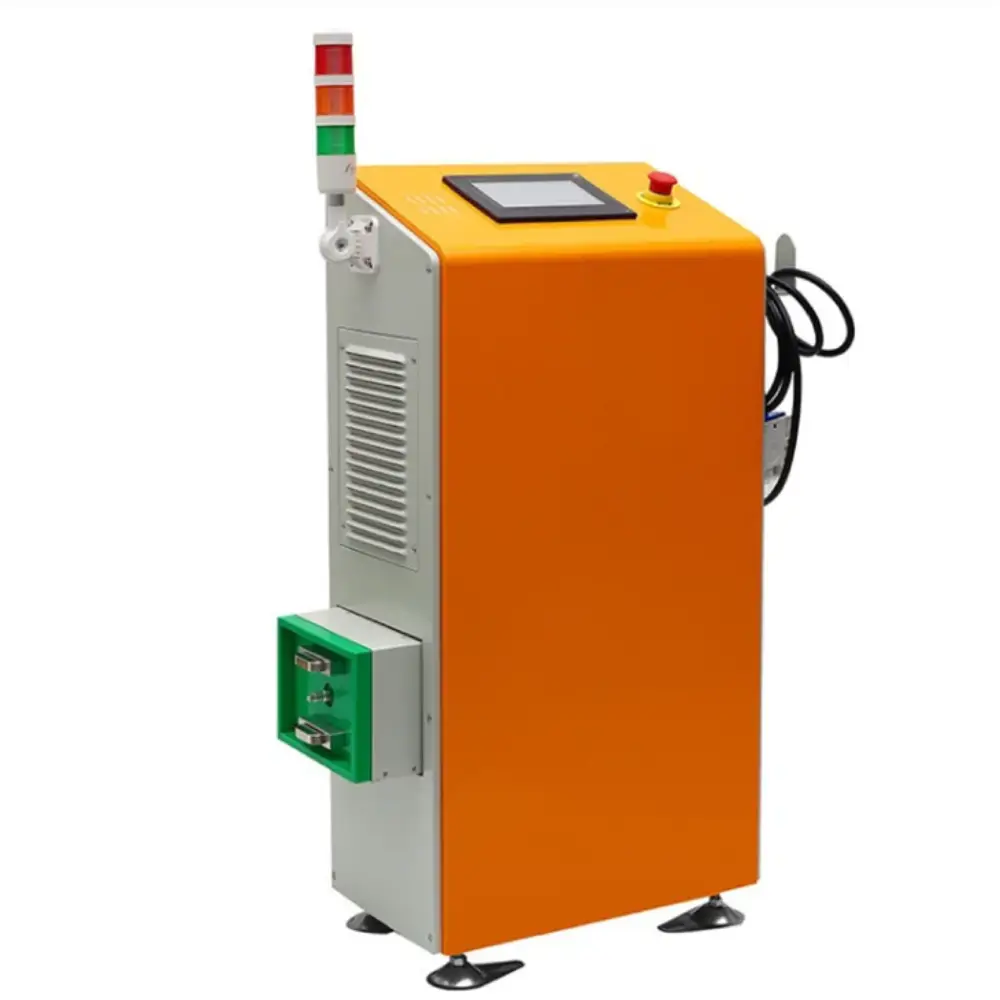

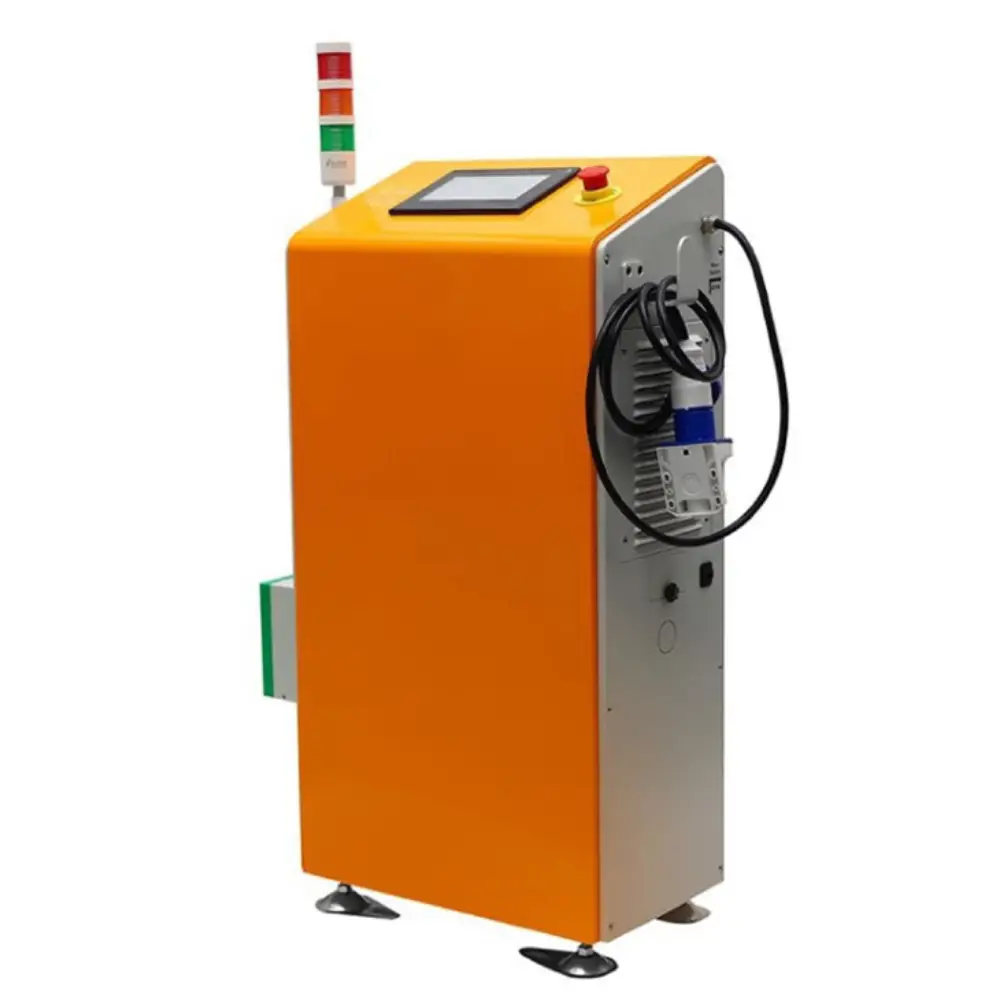

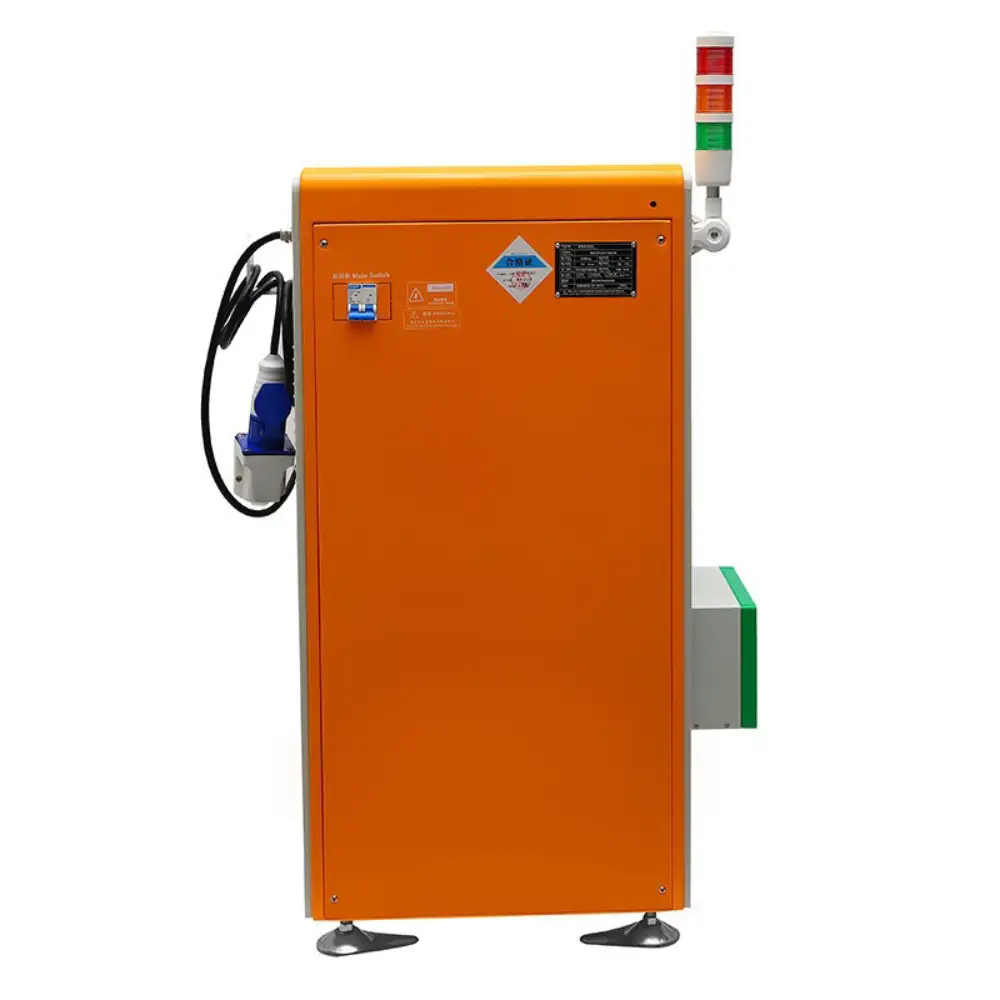

AGV Robot Charger Enables Unattended Charging for Mobile Robots 48V
AGV Robot Charger Enables Unattended Charging for Mobile Robots 48V — designed for ease of use and minimal maintenance, these chargers feature intuitive interfaces that allow operators to quickly plug in and charge their AGVs. Their robust construction and high-quality components ensure long-lasting operation, reducing downtime and improving overall efficiency.
Additionally, these chargers are environmentally friendly, utilizing advanced charging technologies that lower energy consumption, reduce electricity costs, and minimize carbon emissions—making them an ideal solution for businesses seeking sustainable, efficient AGV operations.
Key Features of AGV Robot Charger Enables Unattended Charging for Mobile Robots 48V
- Supports USB flash drive (U-disk) firmware upgrades for easy maintenance and software updates.
- Module status display enables real-time monitoring of operating conditions and historical records.
- Charger extension and retraction can be controlled via photoelectric switch signals.
- Charging brush height can be adjusted according to vehicle specifications and model requirements.
- 200 mm telescopic travel as standard (customizable lengths available).
- Supports both communication-based charging and blind charging modes.
- Supports one-to-many charging configurations
Technical Specifications
| Voltage | Power / Voltage range | 1.5KW | 3KW | 6KW | 10KW | 12KW | 15KW | 20KW | 30KW | 40KW |
| 24V | 18V-30V | 50A | 100A | 200A | 300A | |||||
| MODEL | YR8101 | YR8102 | YR8103 | YR8105 | ||||||
| 48V | 30V-60V | 30A | 50A | 100A | 150A | 200A | 250A | 300A | 400A | |
| MODEL | YR8201 | YR8202 | YR8203 | YR8205 | YR8206 | YR8207 | YR8208 | YR8209 | ||
| 80V | 60V-100V | 40A | 80A | 100A | 120A | 150A | 200A | 300A | 400A | |
| MODEL | YR8301 | YR8302 | YR8303 | YR8305 | YR8306 | YR8307 | YR8308 | YR8309 | ||
| 120V | 30V-120V | 20A | 50A | 80A | 100A | 150A | 200A | 300A | 400A | |
| MODEL | YR8501 | YR8502 | YR8503 | YR8505 | YR8506 | YR8507 | YR8508 | YR8509 | ||
| 200V | 100V-200V | 15A | 30A | 45A | 60A | 75A | 100A | 150A | 200A | |
| MODEL | YR8601 | YR8602 | YR8603 | YR8605 | YR8606 | YR8607 | YR8608 | YR8609 | ||
| 500V | 200V-750V | 5A | 10A | 15A | 20A | 30A | 50A | 65A | 100A | |
| MODEL | YR8701 | YR8702 | YR8703 | YR8705 | YR8606 | YR8707 | YR8708 | YR8709 |
Short Description
- Nominal voltage: 24V/48V/80V
- Output current: customized
- LCD/LED display
- Max power:3KW / 6 KW/9KW
- Use: Forklift, Golf car, truck, EV car, AGV
- Warranty: 1 year
Advantages of AGV Robot Charger Enables Unattended Charging for Mobile Robots 48V
- High Charging Efficiency
- Supports 24/7 Multi-Shift Operations
- Flexible Integration with AGVs & AMRs
- Low Maintenance & High Reliability
- Energy Saving & Eco-Friendly
- Comprehensive Safety Protection
Applications
- AGV & AMR Robots
- Automated forklifts
- Warehouse logistics systems
- Manufacturing plants
- E-commerce fulfillment centers
- Smart factory material handling operations.
Why Choose Our AGV Robot Charger Enables Unattended Charging for Mobile Robots 48V
- Environmentally Engineered — designed to minimize energy consumption and reduce carbon footprint.
- Ideal for Multi-Shift Operations — ensures reliable performance for continuous use.
- Flexible and Adaptable — automatically adjusts to battery charge cycles and supports various battery capacities.
- Uninterrupted Charging — modules intelligently manage power delivery for optimal battery health.
- Lead-acid & LiFePO4 compatible: Compatible with lead-acid and LiFePO4 batteries.
- Maintenance-Free and Versatile — suitable for a wide range of applications with minimal upkeep.
Get a Custom Solution Today
Looking for a reliable AGV Charger 80V 100A for your project? Contact us now for customized solutions, pricing, and technical support.
