Support USB flash disk upgrade charger program, facilitate upgrade and maintenance of module status display, and facilitate viewing the working parameters and working status of each module


History:

1. It can record the time and duration of each start and end of charging, the amount of electricity charged, SOC, etc

2. It can record the time of failure, the cause of failure, etc., which is convenient for troubleshooting. It supports multi language support, and supports Chinese English and traditional Chinese switching

Support blind flushing/communication



Rated input voltage	220Vac	220Vac	220Vac
Input voltage range	90-265Vac	90-265Vac	90-265Vac
Efficiency	≥94%	≥94%	≥94%
Power factor	≥0.99	≥0.99	≥0.99
Rated output voltage	24Vdc	48Vdc	80Vdc
Output voltage range	0-34Vdc	0-64Vdc	0-112Vdc
Rated output current	100A	60A	40A
Output Power	3KW	3KW	3KW
Frequency Range	47-63 Hz
Input line length	3M
Auxiliary power output voltage	12/24V (Optional)
Auxiliary power output current	3A (Optional)
Load regulation	±0.5%(from 10% to 100% load)
Current Precision	±1%+0.5%FS
Voltage Precision	±0.5%+0.2%FS
Ripple voltage	≤±1%Vo peak value, 20MHz bandwidth, ≤±1%Vo peak-to-peak value, 20MHz bandwidth
MTBF	80000H

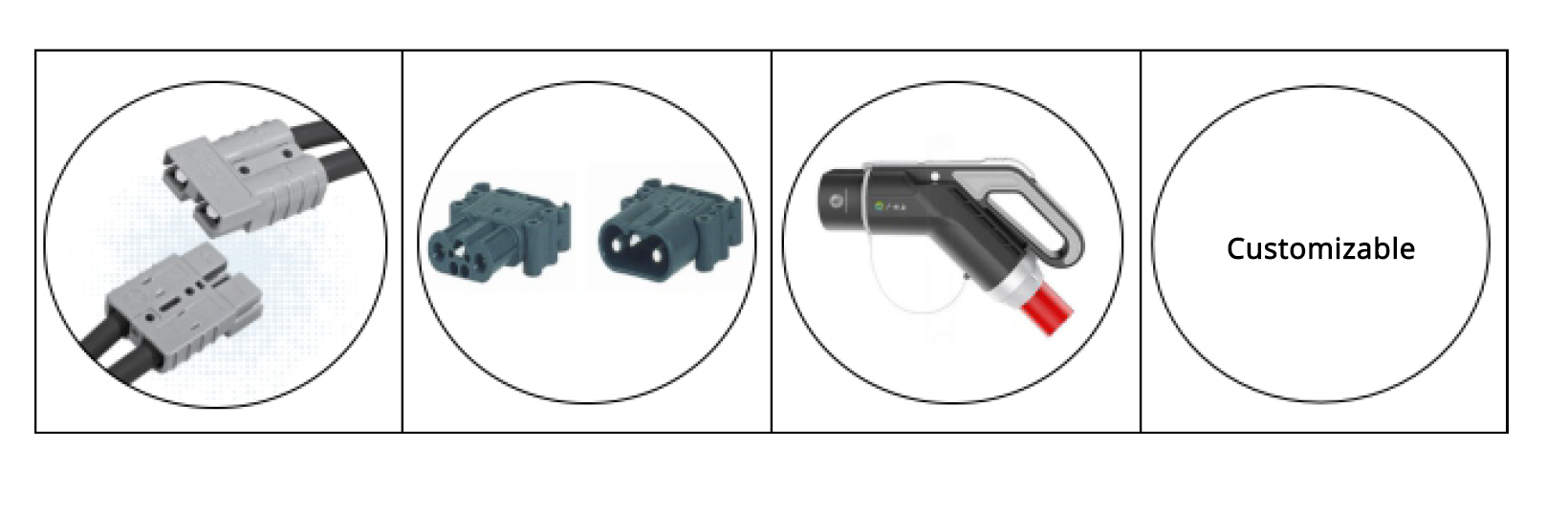

Output connector	REMA
Communication method	CAN
Communication Protocol	Guest for
Dispaly	Touch screen
Safey	Comply with CE, IEC62477 standard design
Cooling	Forced air cooling
Working/Storage temperature and humidity	Work: -20°C to 40°C, storage: -40°C to 70°C

Support USB flash disk upgrade charger program, facilitate upgrade and maintenance of module status display, and facilitate viewing the working parameters and working status of each module


History:

1. It can record the time and duration of each start and end of charging, the amount of electricity charged, SOC, etc

2. It can record the time of failure, the cause of failure, etc., which is convenient for troubleshooting. It supports multi language support, and supports Chinese English and traditional Chinese switching

Support blind flushing/communication



Rated input voltage	220Vac	220Vac	220Vac
Input voltage range	175-264Vac	175-264Vac	175-264Vac
Efficiency	≥94%	≥94%	≥94%
Power factor	≥0.99	≥0.99	≥0.99
Rated output voltage	24Vdc	48Vdc	80Vdc
Output voltage range	0-34Vdc	0-64Vdc	0-112Vdc
Rated output current	100A	60A	40A
Output Power	3KW	3KW	3KW
Frequency Range	47-63 Hz
Input line length	3M
Auxiliary power output voltage	12/24V (Optional)
Auxiliary power output current	3A (Optional)
Load regulation	±0.5%(from 10% to 100% load)
Current Precision	±1%+0.5%FS
Voltage Precision	±0.5%+0.2%FS
Ripple voltage	≤±1%Vo peak value, 20MHz bandwidth, ≤±1%Vo peak-to-peak value, 20MHz bandwidth
MTBF	80000H
Output connector	REMA
Communication method	CAN
Communication Protocol	Guest for
Dispaly	Touch screen
Safey	Comply with CE, IEC62477 standard design
Cooling	Forced air cooling
Working/Storage temperature and humidity	Work: -20°C to 40°C, storage: -40°C to 70°C
