Module Battery System

Efficient

Automatic charging according to predetermined logic, with high
efficiency

Rated Capacity

Square aluminum shell structure, high-precision explosion-proof valve design, good safety performance

Platform Stability

The battery has low internal resistance, high discharge rate and stable discharge platform

Customized

Can be designed and customized according to customer needs

Long Life

Good battery quality, long cycle life

Environmental Protection

Green and environment-friendly, passed the ISO14000 environmental system certification

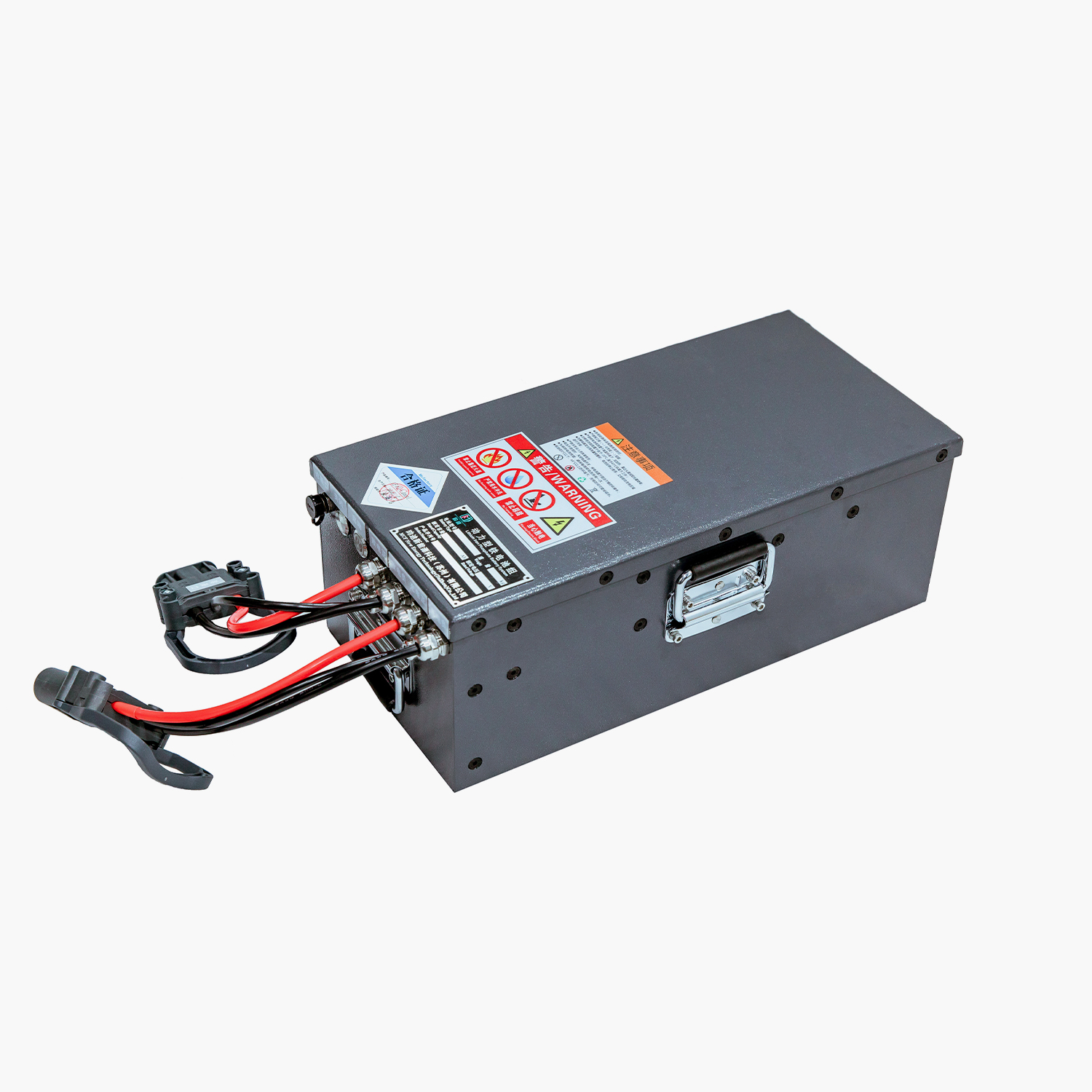

161
  • Technical Parameter

    MCF HBS-V48-315Y-02
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 315Ah
    2 Minimal capacity 300Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 150A Max.charging current 200A
    7 Max.constant discharging current 300A Max.400A sustains 15s
    8 Overall dimensions 800*690*265mm Support customization
    9 Weight 200±10kg Support customization
    10 Power interface REMA 320A Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

162
  • Technical Parameter

    MCF AJW-A80-420Y-01
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 315Ah
    2 Minimal capacity 300Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 150A Max.charging current 200A
    7 Max.constant discharging current 300A Max.400A sustains 15s
    8 Overall dimensions 900*279*599mm Support customization
    9 Weight 200±10kg Support customization
    10 Power interface REMA 320A Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

163
  • Technical Parameter

    MCF MW-V48-315Y-04
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 315Ah
    2 Minimal capacity 300Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 150A Max.charging current 200A
    7 Max.constant discharging current 300A Max.400A sustains 15s
    8 Overall dimensions 795*330*765mm Support customization
    9 Weight 230±10kg Support customization
    10 Power interface REMA 320A Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

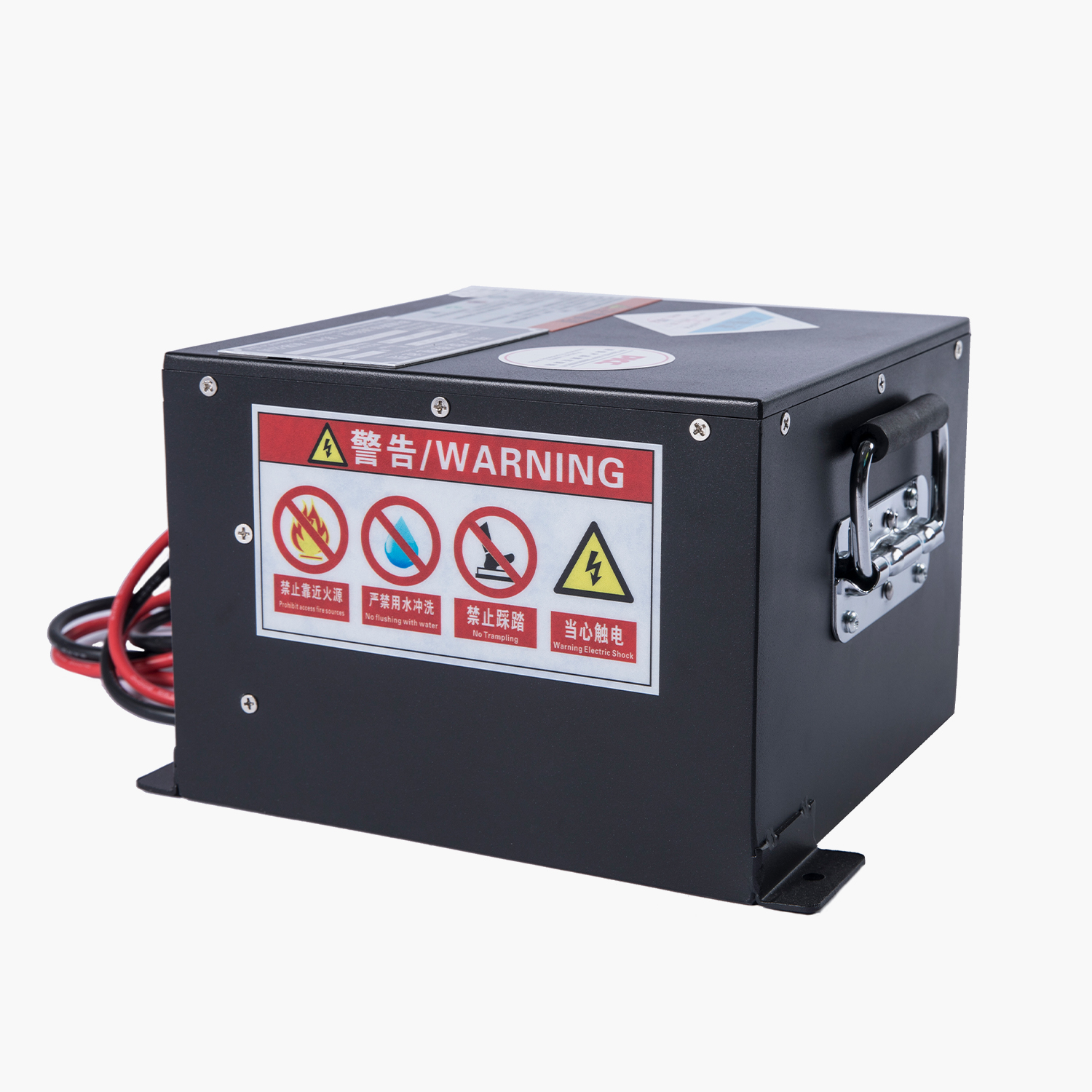

164
  • Technical Parameter

    MCF MNLM-V24-270M-07
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 50Ah
    2 Minimal capacity 45Ah
    3 Rated voltage 48Vdc
    4 Max.charge voltage 54.75Vdc
    5 Discharge end voltage 37.5Vdc
    6 Fast charging current 25A Max.charging current 50A
    7 Max.constant discharging current 50A Max.80A sustains 15s
    8 Overall dimensions 420*220*135mm Support customization
    9 Weight 20±5kg Support customization
    10 Power interface SB120 Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

165
  • Technical Parameter

    MCF MW-V24-200M-05
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 120Ah
    2 Minimal capacity 110Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 60A Max.charging current 100A
    7 Max.constant discharging current 100A Max.180A sustains 15s
    8 Overall dimensions 800*500*200mm Support customization
    9 Weight 100±5kg Support customization
    10 Power interface SB175 Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

166
  • Technical Parameter

    MCF MW-V24-200M-05
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 120Ah
    2 Minimal capacity 110Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 60A Max.charging current 100A
    7 Max.constant discharging current 100A Max.180A sustains 15s
    8 Overall dimensions 800*500*200mm Support customization
    9 Weight 100±5kg Support customization
    10 Power interface SB175 Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

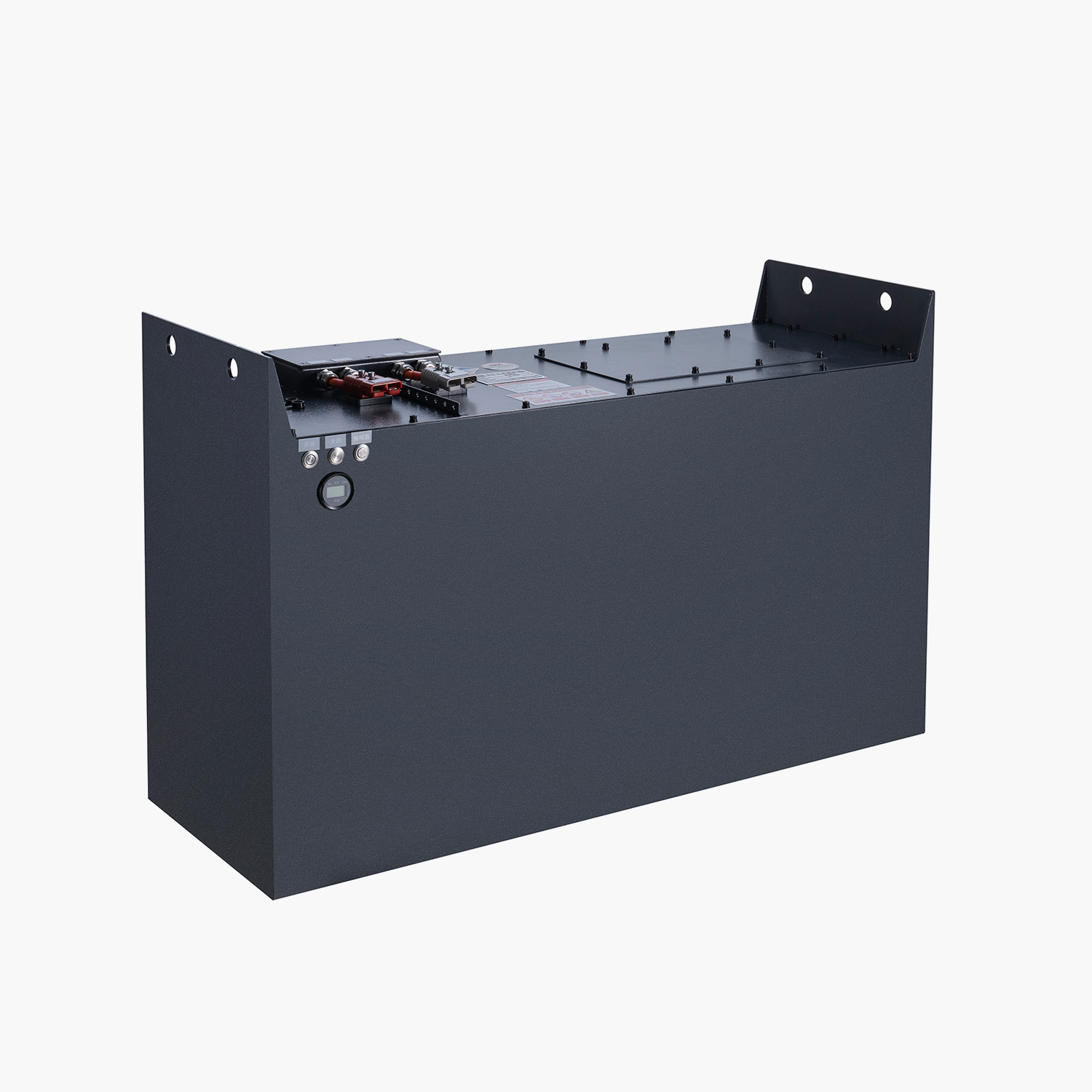

167
  • Technical Parameter

    MCF MW-V24-200M-05
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 120Ah
    2 Minimal capacity 110Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 60A Max.charging current 100A
    7 Max.constant discharging current 100A Max.180A sustains 15s
    8 Overall dimensions 800*500*200mm Support customization
    9 Weight 100±5kg Support customization
    10 Power interface SB175 Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature

168
  • Technical Parameter

    MCF MW-V24-200M-05
    NO. ITEM PARAMETERS NOTES
    1 Rated capacity 120Ah
    2 Minimal capacity 110Ah
    3 Rated voltage 51.2Vdc
    4 Max.charge voltage 58.4Vdc
    5 Discharge end voltage 40Vdc
    6 Fast charging current 60A Max.charging current 100A
    7 Max.constant discharging current 100A Max.180A sustains 15s
    8 Overall dimensions 800*500*200mm Support customization
    9 Weight 100±5kg Support customization
    10 Power interface SB175 Support customization
    11 Working temperature -20～+45℃ Environmental temperature
    12 Charging temperature 0~45℃ Environmental temperature
    13 Storage Temp.（Hum:45%~75%,Atm pressure:70 kPa~106kPa） -20~ +45℃ Environmental temperature
